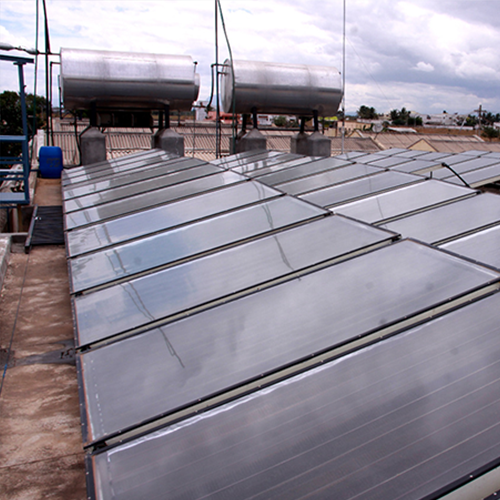

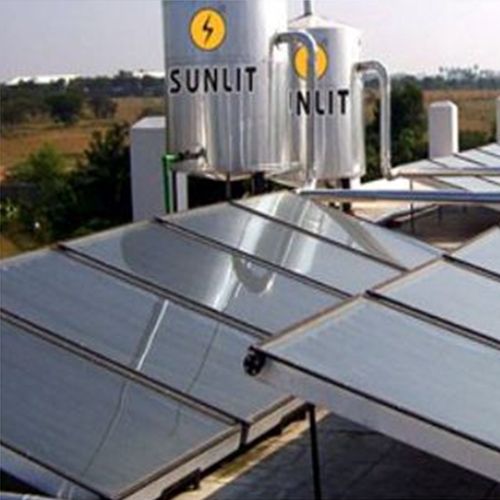

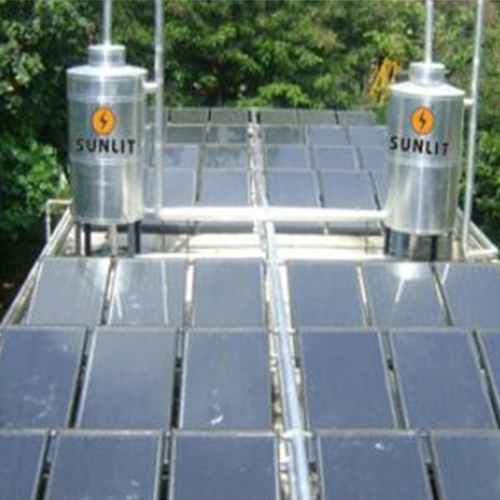

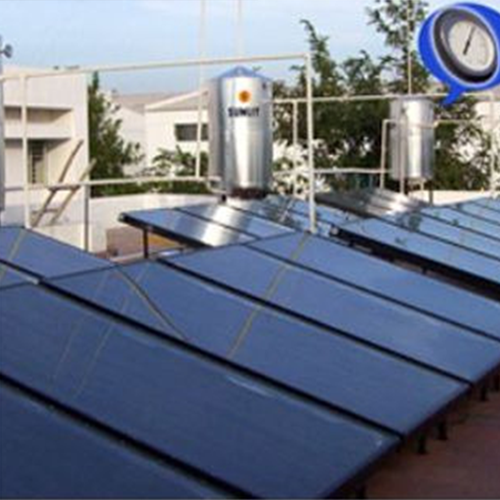

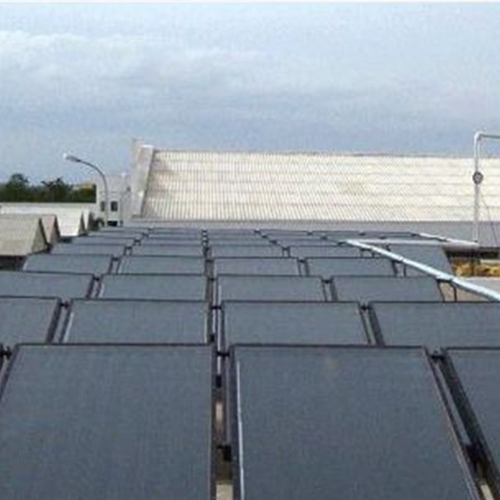

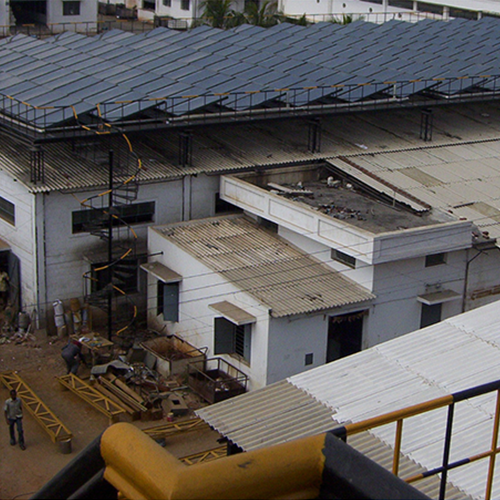

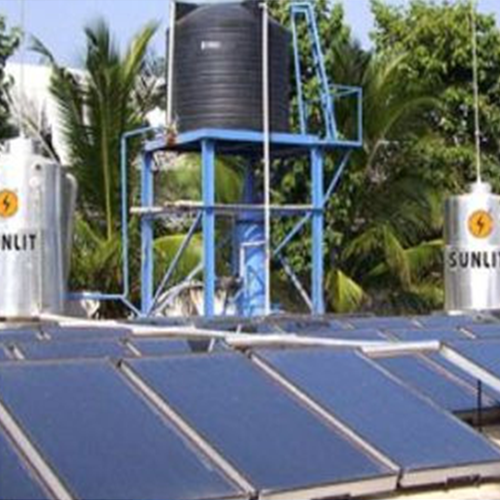

Industrial Solar Water Heater
Area of Implementation
- Textile Industry
- Coir Board Industry
- Rubber Industry
- Dairy Industry
- Canteen
CASE STUDY IN A TEXTILE INDUSTRY AT COIMBATORE
Textile industry at Coimbatore cooking for 750 staffs, 3 times a day. An average, they consume 78 Nos of 19 Kg LPG cylinders per month. After the incorporation of solar system, their consumption per month is reduced from 78 Nosto.43 Nos.
Flate Plate Collector Specification
| Absorber | Copper Black Chrome selective coating |
| Fin Type | Deep Serrated Fin to have increased surface area 10-15% |
| Copper Quality | 99.99% 0.02pure |
| Collector Area | 2.0Sq.Mts |
| Header/Raiser Tube | Copper 25/12.5 mm.dia |
| Raiser to Fin Joining | Ultra sonic Welding |
| Collector Frames | Aluminium Powder Coated |
| Top Cover Glazing | Toughened Glass 4mm thickness |
| Glass Beading/Gasket | Pure EPDM Rubber |
| Collector Insulation | Pluff Slabs for sides and 50mm.thick Rock Woolslabs |
| Flanges | Brass Forged & Machined Flanges |
Insulated Storage Tank
| Inner Tank Material | Stainless Steel |
| Outer Tank Material | Aluminium Cladding |
| Tank Capacity | Customizde to Customer Requirement |
| Inlet/Outlet Pipe | Stainless Steel |
| Tank Welding | Tig Welding |
| Filler Material | Stainless Steel |
| Thermal Insulation | Rock Wool |
| Heat Retention | 72 hours |
