Heat Pump
Heat Pump

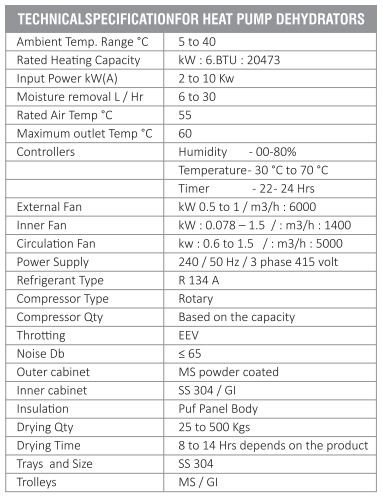

Specifications
| Ambient temp.Range C | 5 to 40 |
| Rated Heating Capacity | KW : 6 TU:20473 |
| Input Power KW (A) | 2 to 10Kw |
| Moisture removal L/Hr | 6 to 30 |
| Rated Air Temp C | 55 |
| Maximum Outlet Temp C | 60 |
| Controllers | Humidity - 00-80% |
| Temperature 30degC to 70deg C | |
| Timer - 22-24 Hrs | |
| External Fan | kW 0.5 to 1/m3/h:6000 |
| Inner Fan | kW 0.078-1.5 /:m3/h:1400 |
| Circulation Fan | kW 0.6-1.5 /:m3/h:5000 |
| Power Supply | 240/50Hz / 3 phase 415 volt |
| Refrigerant Type | R 134 A |
| Compressor Type | Rotary |
| Compressor Qty | Based on the capacity |
| Throtting | EEV |
| Noise db | <=65 |
| Outer Cabinet | MS Powder Coated |
All in One Model
| Description | FES 50 | FES 100 | FES 300 | FES 500 |
| Capacity | 50kg/batch | 100kg/batch | 300kg/batch | 500kg/batch |
| Moisture Removal | 8-10kg / hr | 6-8kg / hr | 18-25kg / hr | 30-40kg / hr |
| Power | 2kW | 3kW | 7kW | 10kW |
| Voltage | 220v 50Hz | 220v 50Hz | 415v 50Hz | 415v 50Hz |
| Min Temp | 15deg C | 15deg C | 15deg C | 15deg C |
| Max Temp | 70deg C | 70deg C | 70deg C | 70deg C |
