Domestic Solar Water Heater FPC
Solar hot water system is based on the principle of black body absorption. The black surface of the collector absorbs the heat energy from the sun rays and transfer it to the water passing through the copper tubes, Hot water being lighter in density, raised to the insulated storage tank and equal amount of cold water replaces this hot water from the copper tubes.

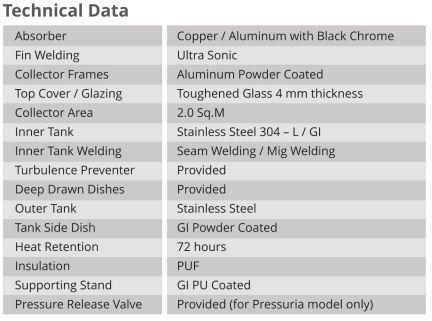

Technical data
| Absorber | Copper/Aluminium with Black Chrome |
| Fin Welding | Ultra Sonic |
| Collector Frames | Aluminium Powder Coated |
| Top Cover / Glazing | Toughness Glass 4mm Thickness |
| Collector Area | 2.0 sq.M |
| Inner Tank | Stainless Steel 304-L/GI |
| Inner Tank Welding | Seam Welding / Mig Welding |
| Turbalence Preventer | Provided |
| Deep Drawn Dishes | Provided |
| Outer Tank | Stainless Steel |
| Tank Side Dish | GI POwder Coated |
| Heat Retention | 72 hours |
| Insulation | PUF |
| Supporting Stand | GI PU Coated |
| Pressure release Valve | Provided (for Pressuria model only) |

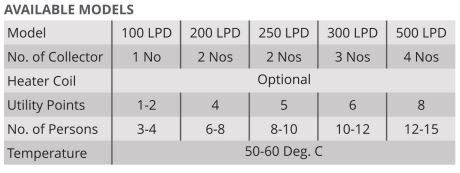

AVAILABLE MODELS
| Model | 100 LPD | 200 LPD | 250 LPD | 300 LPD | 500 LPD |
| No of Collector | 1 No | 2 Nos | 2 Nos | 3 Nos | 4 Nos |
| Heater Coil | Optional | ||||
| Utility Points | 1-2 | 4 | 5 | 6 | 8 |
| No of Persons | 3-4 | 6-8 | 8-10 | 10-12 | 12-15 |
| Temperature | Optional | ||||
